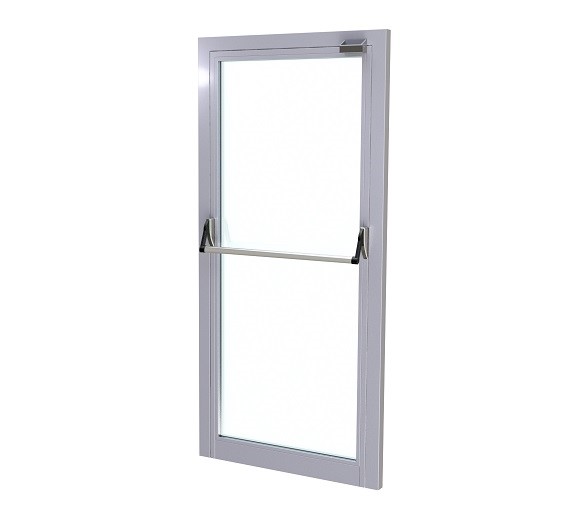

Minerva is tested according to standards UNI EN 1627:2011, UNI EN 1628:2016, UNI EN 1630:2016 with classification RC4 against forced entry, compliant with standard UNI EN 14351-1:2010.
- Frame constructed from laminated steel profile sections, seam welded in sections of 50 x 60 mm and faced with perimeter sealing elements in EPDM. Frame fixture facilitated with adjustment compensation system.
- Stratified glass 29/31 mm compliant with standard UNI EN 356:2002 with resistance class against manual attack of P78, and standard UNI EN 1063:2001 with resistance class against projectiles of BR3.
- Tubular steel glazing bead 20 X 20 x 3 mm and 8M countersunk fixing screws.
- Side stiles containing the lock, deviators, and movement shafts are protected by manganese plate over the entire surface.
- Lock with crash bar and 7 closing points, automatic reset compliant with standard UNI EN 1125:2008.
- Hinge pins compliant with standard UNI EN 1935:2002 in adequate number to support the weight of the door.
- Closure electromagnet complaint with the specifications of circular n. 74/2000 for emergency exit doors specifically designed for activities like banks, post offices, etc. Electromagnet cable protected with manganese plate.
Typical application
- Shops
-
Emergency exits for banks, post offices, jewelers, airports, etc.
- Control rooms
Size
Dotazioni di base
- Pareti laterali ricurve in vetro
- Consolle di comando
- Segnalatori ottici
- Comunicazioni vocali per utenti in transito
- Sensori di presenza
- Kit di primo ingresso
- Blocco di sicurezza in chiusura con serratura meccanica
Dotazioni opzionali
- Controllo accessi con lettori di tessere, lettore biometrico
- Sensori di apertura porta
- Metal detector
- Microtelecamera interna
- Consolle di comando touch-screen con comandi vocali
- Autogestione con controllo del vano interno per il rilevamento di oggetti
- Controllo del transito monopersona
- Finitura goffrata nelle tinte RAL

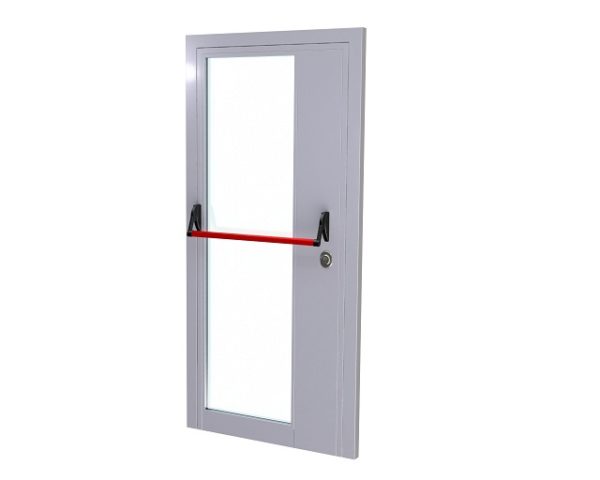

Aurora
AURORA is tested according to standards UNI EN 1627:2011, UNI EN 1628:2016, UNI EN 1630:2016 with classification RC4 against forced entry, compliant with standard UNI EN 14351-1:2010.
Frame constructed from laminated steel profile sections, seam...
Moowdoor
The MOOW DOOR is new to the Tesi catalogue and was designed to meet the needs of space rationalization.
Thanks to a combined swing and slide movement, the opening radius and the overall dimensions with the door open, are minimized thus ensuring...
